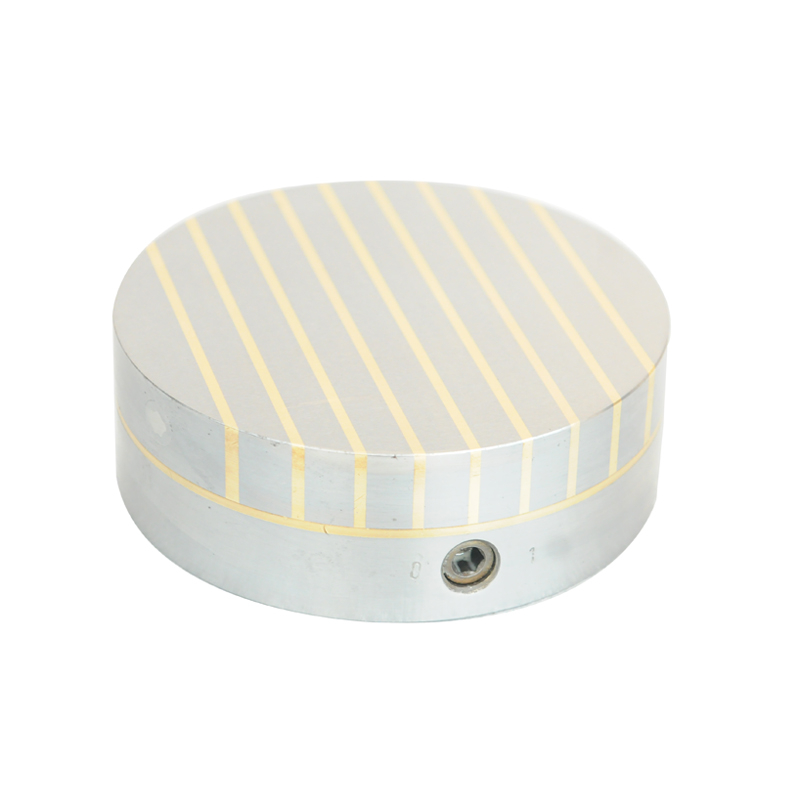

Powerful Round Permanent Magnetic Chuck(RMM Series)

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Description:

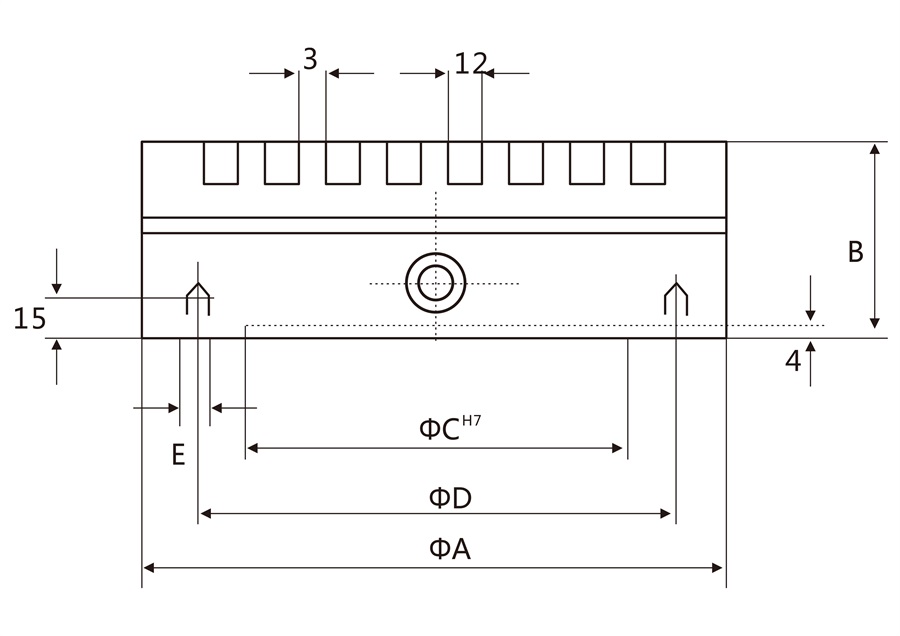

● Transverse pole pitch 15mm,3mm brass/12mm steel.Ndfeb magnet provide powerful gripping force

● Conventional holding force: 250N/cm² (JIS)

● Magnetic field height: 10mm

● Pole plate wearing limit:5mm

● Pole pitch is also can be 15+4mm
Availability:

Product Description

Application:

1.Best suitable for heavy machining, such as milling and cutting.

2.Used for small, medium and large workpieces, including those with rough or uneven surfaces.

3.Suit for hard alloy process.


Feather:

1.The magnetic field is without any stray fields, preventing magnetization of the tool.

2.Exceptionally strong neodymium magnetic system.

3.The switch is controlled by a handle, and the workpiece can be easily removed in the closed position

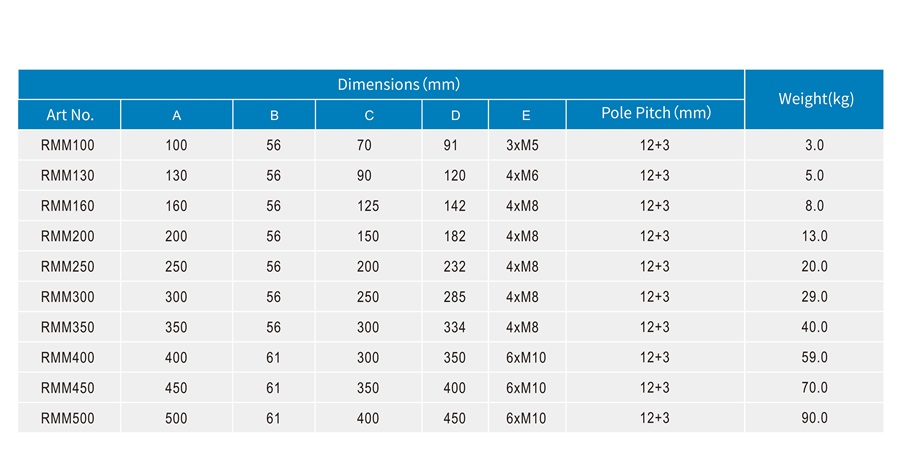

RMM Series (4)RMM Series (6)
