Micro Pole Round Permanent Magnetic Chuck(RMC Series)

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Description:
● Transverse pole pitch 2mm,0.5mm brass/1.5mm steel.Ndfeb magnet provide powerful gripping force

● Conventional holding force: 120N/cm² (JIS)

● Magnetic field height: 8mm

● Pole plate wearing limit:5mm
Availability:

Product Description

Application:

1.Best suitable for grinding and EDM application.

2.Used for small, medium and thinner workpieces.


Feather:

1.The magnetic field is without any stray fields, preventing magnetization of the tool.

2.Exceptionally strong neodymium magnetic system.

3.The switch is controlled by a handle, and the workpiece can be easily removed in the closed position

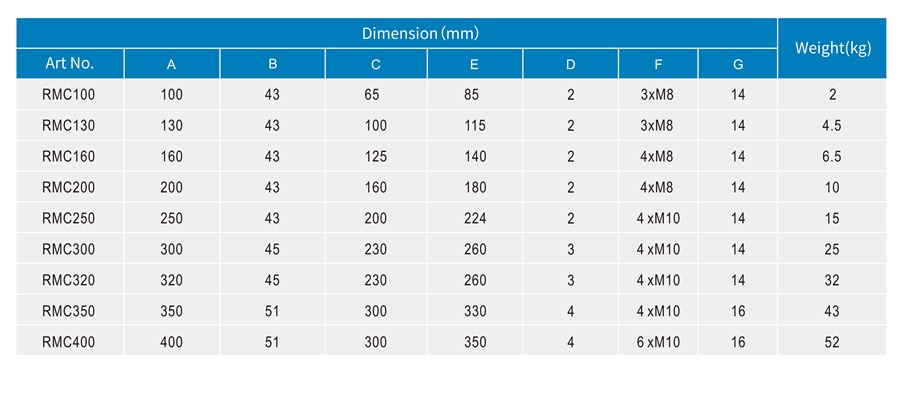

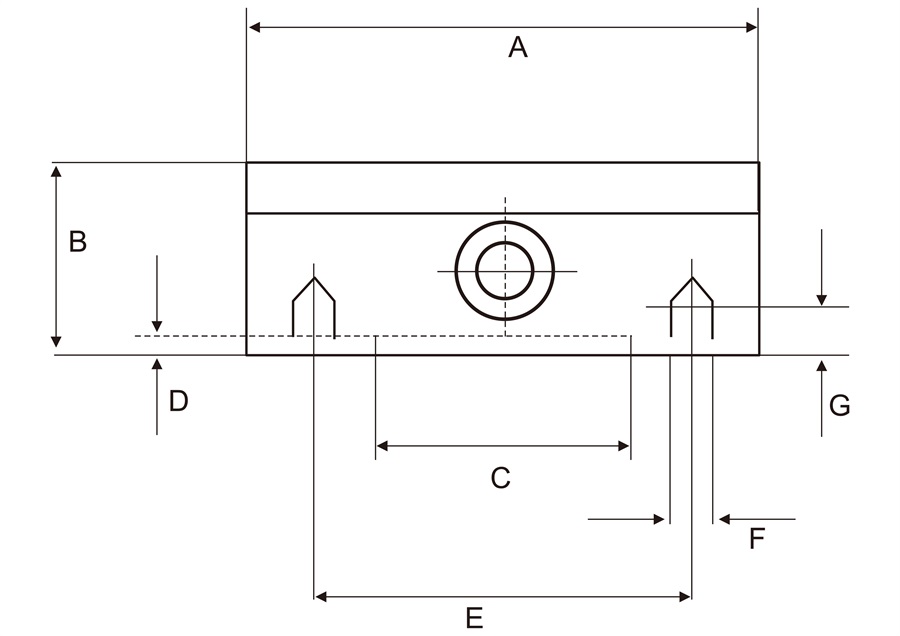

RMC Series (4)RMC Series (1)_
