Standard Pole Electro-Permanent Magnetic Chuck(EPS Series)

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Range of Application:
● Medium density pole, suitable for grinding and milling machine work
● Electro-Permanent magnetic chucks is the main accessory of horizontal grinder, which is very suitable for fixing workpiece on grinder.
● It can grind workpiece of various sizes
● Lamination 3mm brass/12mm steel
● Min.thickness of workpiece:20mm
● Min.dimension of workpiece :95mmx95mm
● Nominal holding force:150N/cm²
Availability:

Product Description

Feathers:

The magnetic field area is limited to prevent the tool from being magnetized

No thermal deformation improves accuracy of high precision

Immediately becomes magnetic when it is energized

Variable power makes it possible to adjust the magnetic force.

Electro-permanent magnetic chuck can be easily fixed to the surface grinder.

Multiple chucks can be operated simultaneously by a single controller

Special chucks can be designed and manufactured according to requirements

Pole pitch of 19mm(15+4) can be made at extra cost.

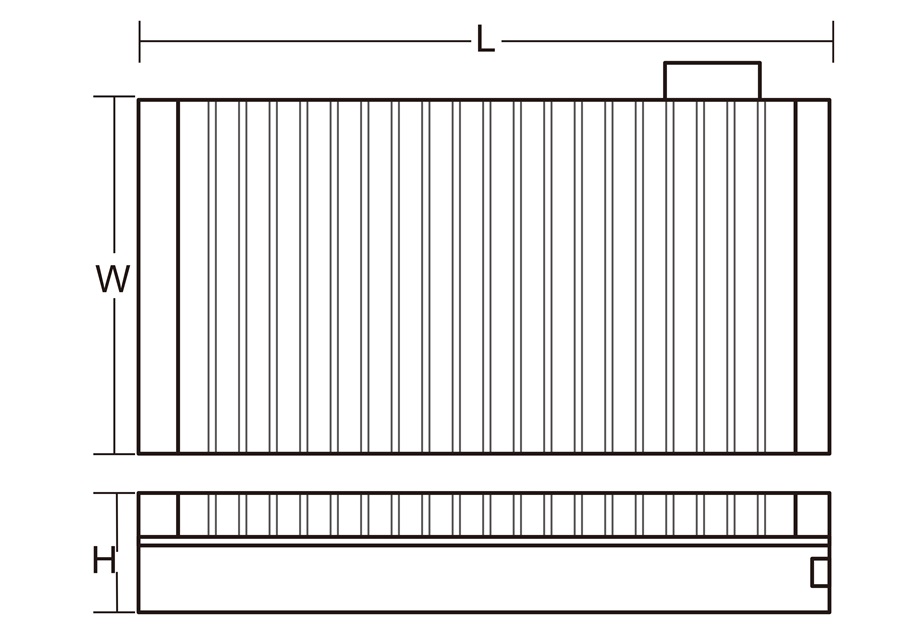

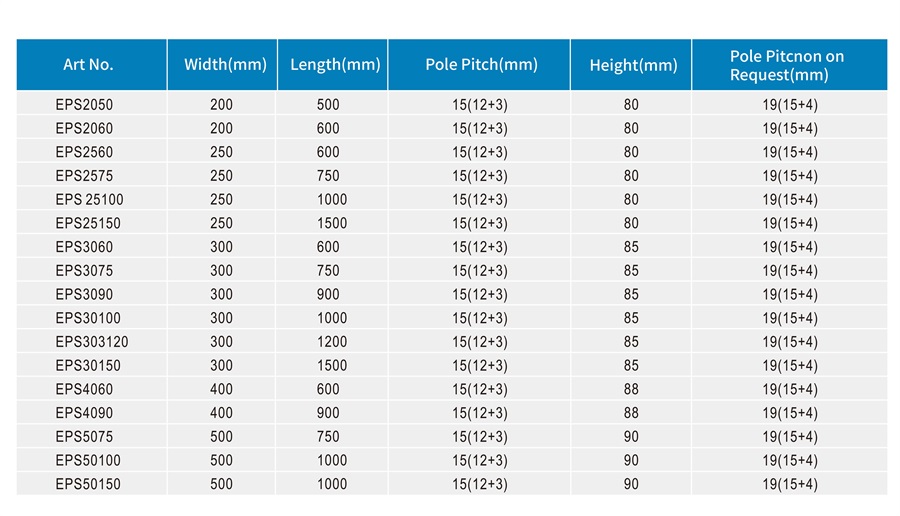

EPS SeriesEPS Series (2)

Other size on request
