Standard Pole Electro-Permanent Magnetic Chuck(EPM75 Series)

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Description :
● It's with a standard pole density,composed size of 75mm*75mm magnetic poles with a force of 750kgs each pole.

● By counting the number of poles, the workpiece clamping at least 4 poles contact surfaces can be determined the force in advance.

● Controller do the Magnetizing or demagnetizing in 0.5~ 5 seconds.
Availability:

Product Description

Application:

1.Used for normal and heavy duty drilling, milling, and CNC machining center

2.Used for medium dimensions with normal operating air gaps and medium workpieces.


Advantages:

1.Flexibility

Allow single set-up machining with 5-sided accessibility

Workpieces larger than the table are machinable

2.Safety

No electric power supply during clamping

Constant and uniform magnetic power over entire area.

There is no temperature rise when the chuck runs, so it will not affect the accuracy and the workpiece will not be deformed, and can be used for a long time.

3.Efficient

Easy and quick position,reduce set-up time

4.Cost-effectiveness

No maintenance

No machine modifications

Reduced tool consumption

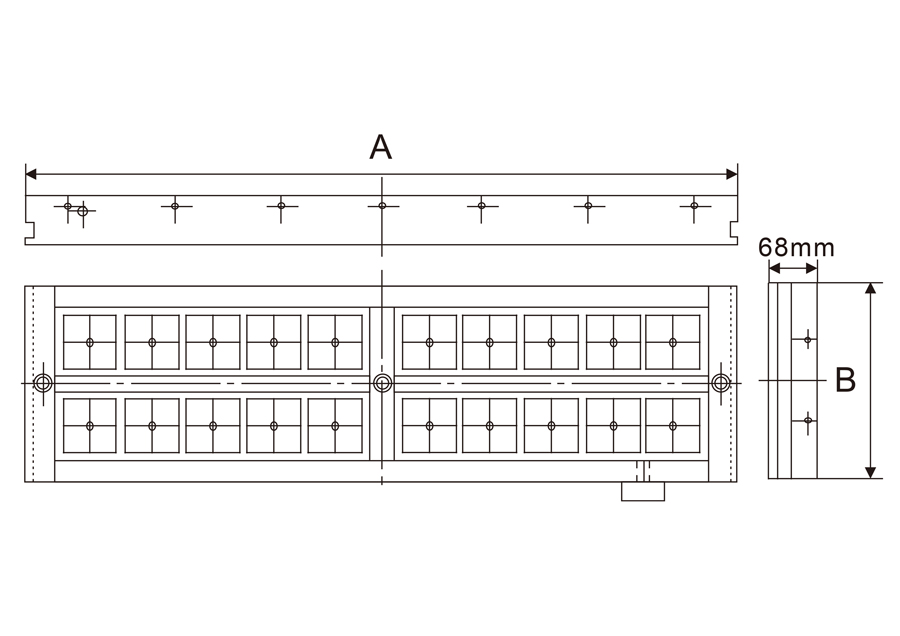

二维数据

Other size on request
