Single Sine Permanent Magnetic Chuck(MCS Series)

loading

Share to:
Description:
●  Transverse pole pitch 2mm,0.5mm brass/1.5mm steel.Ndfeb magnet provide powerful gripping force

●  Maximize the effective working area

●  Angle precision 0.007/100mm

●  It can be locked at all angles
Availability:

Product Description

Application:

Suitable for all kinds of surface grinding machine,electric discharge machine.


Feather:

1.The magnetic field is without any stray fields, preventing magnetization of the tool.

2.Exceptionally strong neodymium magnetic system.

3.The switch is controlled by a handle, and the workpiece can be easily removed in the closed position

4.The process is specially treated to make the adjustment precision higher

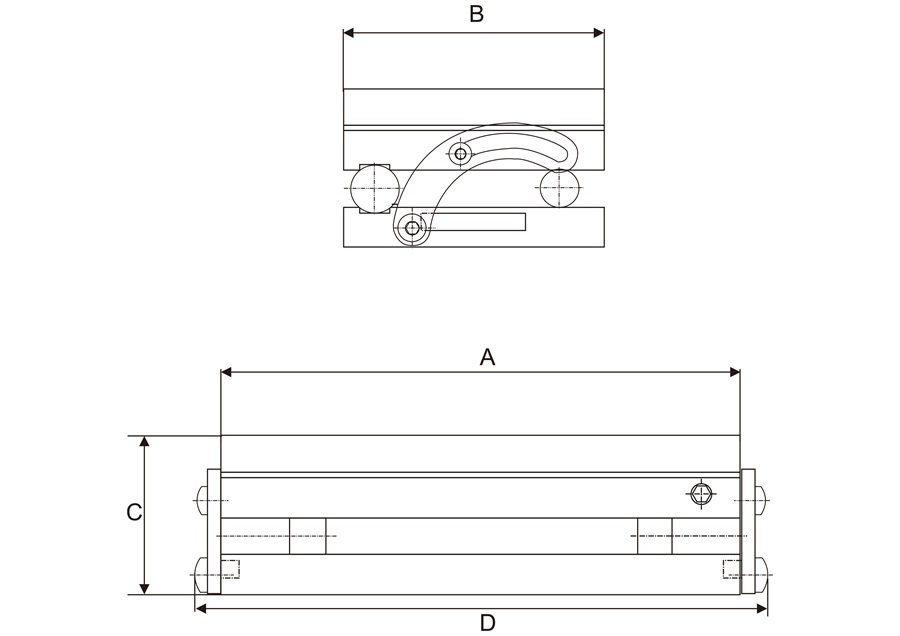

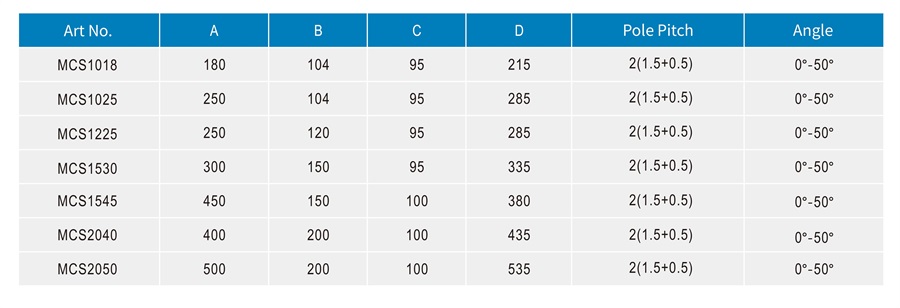

MCS Series (2)MCS Series (3)
