Round Electro-Permanent Magnetic Chuck with Radial Poles(EPR Series)

loading

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Description:
● The use of circular radioactive magnetic pole structure, suitable for circular and any shape of the workpiece clamping, At the same time contact all the magnetic pole, play a strong energy, the workpiece has a strong suction.


● Controller do the Magnetizing or demagnetizing in 0.5~ 5 seconds.
Availability:

Product Description

Application:

1.Used for normal and heavy duty drilling, milling, and CNC machining center

2.Used for small, medium dimensions with normal operating air gaps and thinner workpieces.


Advantages:

1.Flexibility

Allow single set-up machining with 5-sided accessibility

Workpieces larger than the table are machinable

2.Safety

No electric power supply during clamping

Constant and uniform magnetic power over entire area.

There is no temperature rise when the chuck runs, so it will not affect the accuracy and the workpiece will not be deformed, and can be used for a long time.

3.Efficient

Easy and quick position,reduce set-up time

4.Cost-effectiveness

No maintenance

No machine modifications

Reduced tool consumption

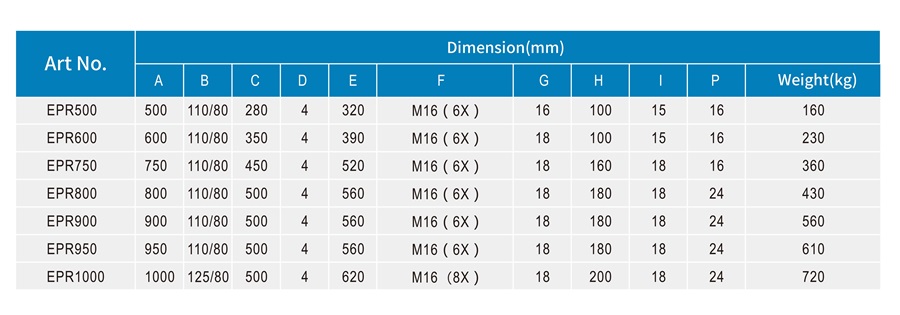

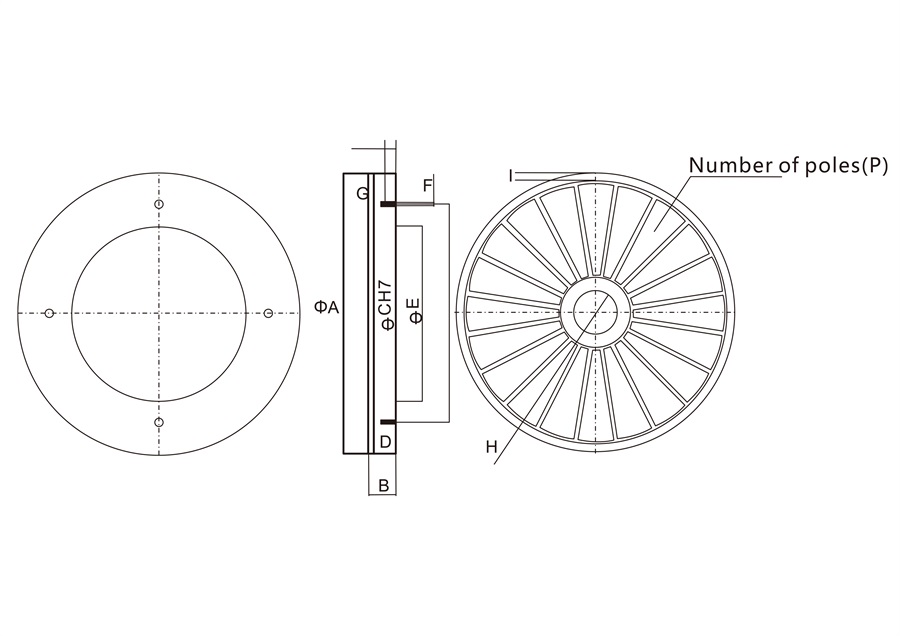

EPR Series (3)EPR Series (1)_看图王

Other size on request
