Powerful Permanent Magnetic Chuck(PMM Series)

loading

Share to:
Description:
●  Transverse pole pitch 15mm,3mm brass/12mm steel.Ndfeb magnet provide powerful gripping force


●  Conventional holding force: 250N/cm² (JIS)

●  Magnetic field height: 12mm

●  Pole plate wearing limit:5mm

●  Pole pitch 15+4 mm can be produced.
Availability:

Product Description

Application:

1.Best suitable for heavy machining, such as milling and planning.

2.Used for small, medium and large workpieces, including those with rough or uneven surfaces.

3.Suit for hard alloy process.


Feather:

1.The magnetic field is without any stray fields, preventing magnetization of the tool.

2.Exceptionally strong neodymium magnetic system.

3.The switch is controlled by a handle, and the workpiece can be easily removed in the closed position

4.The chucks are equipped with longitudinal and transverse stopper.

5.Parallelism,flatness and squareness 0.005mm/100mm

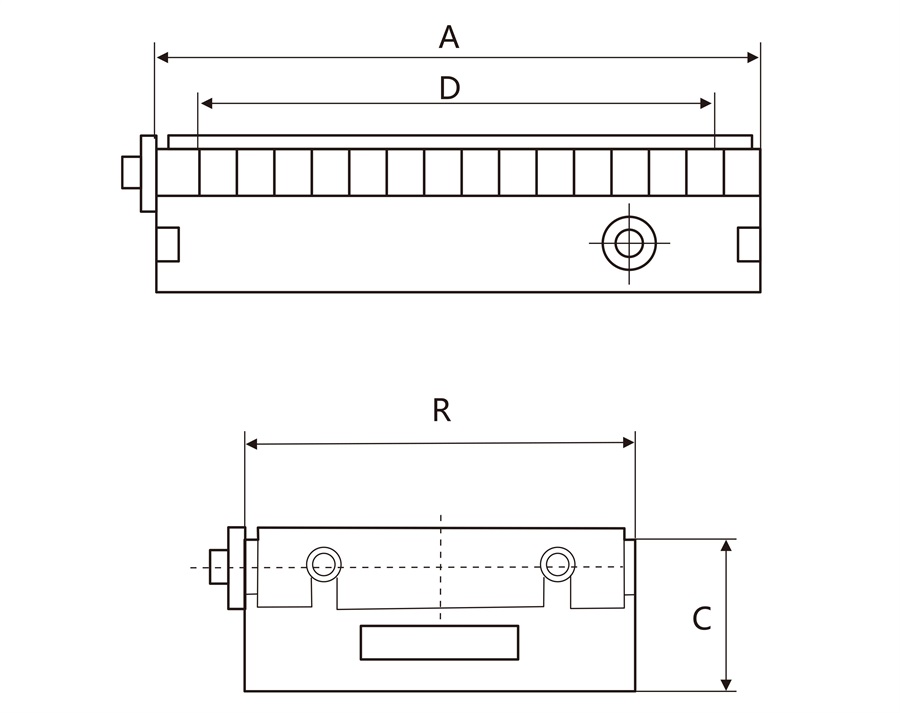

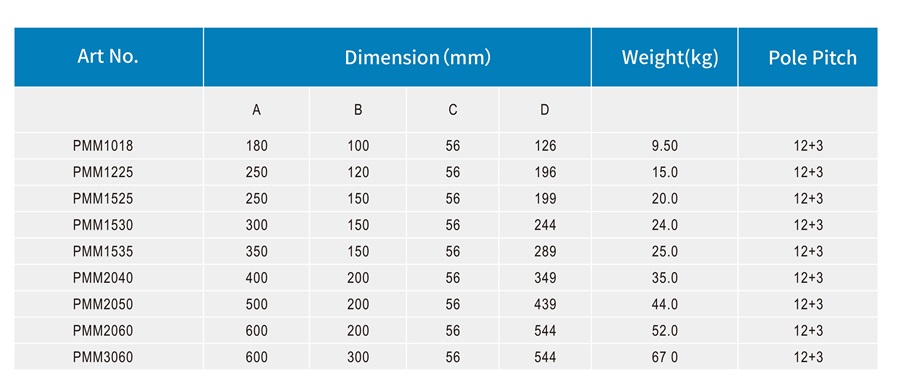

PMM Series (3)_PMM Series (4)_
